$649.99
MATERIAL – Quilted fiberglass core with vinyl-coated fiberglass-cloth facing and vinyl noise barrier
PATTERN – Quilted Diamond Pattern
THICKNESS- BSC-25: Nominal – 1”
SIZE – BSC-25 Curtain (Quilting on Both Sides) – Standard: 48″ Wide x 84’h
COLOR – Standard PVC Facing – Silver
FLAMMABILITY – Class A Fire Rated per ASTM E84

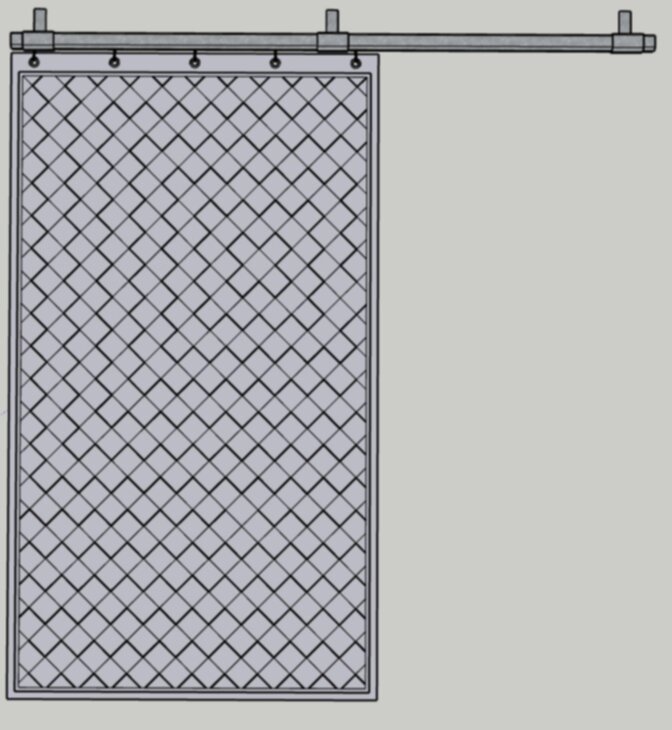

INSTALLATION – Grommet hangers with nylon roller hooks and (2) 42″l extruded aluminum tracks with mounting hardware to create (1) 7′ track total.
APPLICATIONS – Designed as an economical way to block noise transfer through a door/doorway, within 48″w x 84″h. For both residential or industrial applications.
Quilted Curtain S.T.O.P. is a noise barrier and sound absorber, designed to enclose different types of noise sources or work areas. This Kit comes with (2) 3 1/2′ Roller Tracks to create a 7’l track system with hardware for install, and a 4’w x 7’h Barrier Curtain with 1lb MLV core and 1″ absorptive facing on both sides, in Gray. These are suitable for industrial, commercial, and residential settings.
Type | Thickness | STC Value | Frequency |
---|---|---|---|
BSC-25 with 1lb. barrier | 1-inch | 12 | 125Hz |
10 | 250Hz | ||
27 | 500Hz | ||
40 | 1kHz | ||
44 | 2kHz | ||
43 | 4kHz |
Weight | 65 lbs |
---|---|
Dimensions | 49 × 12 × 14 in |
